Our company provides:
．Complete Engineering Supply, Design and Installation Services.
．Coolroom, Freezer Room to Suit All Applications.
．Modular Coldroom
．Success Walk-in-doors
．Standard Coldroom Accessories: Hydraulic Door Closer, Heated Ventalor Ports, Pilot Light and Switch ．Assembly, Hinges, Vapor proof hights and Safety Lock
．Quality and Service GuarantyIn
the new century, sticking to principles of profit-sharing and growth by partnership, our company is willing to conduct exchange on product development and technical cooperation with friends from various circles.



　　　　　　 We will be grateful to hear your comments or suggestions.

  1. Stucco Embossed Aluminium
2. Stainless Steel
3. Painted Galvanized Mild Steel
4. Galvanized Mild Steel




Both left hand swing or right hand swing doors are of hinged type. Standard door opening is 860mm(W) X 1900MM(H). Construction is same as well panels. Magnetic door gasket and anti-sweat heaters are provided to prevent condensation in door perimeter and jamb. Deated air vent is equipped on freezer compartment. Either fiberglass reinforced plastic(FRP) or stainless steel door perimeter and jamb to be fabricated according to customer's requirement.

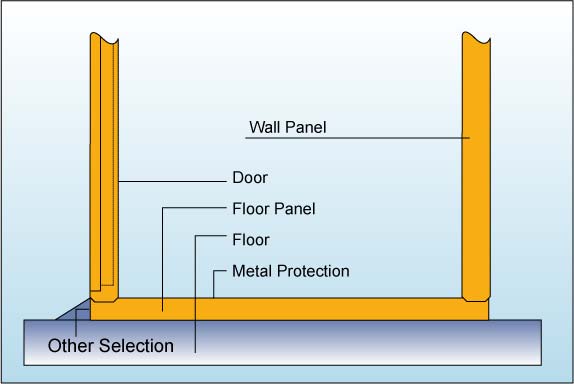

STANDARD FLOOR CONSTRUCTIONS

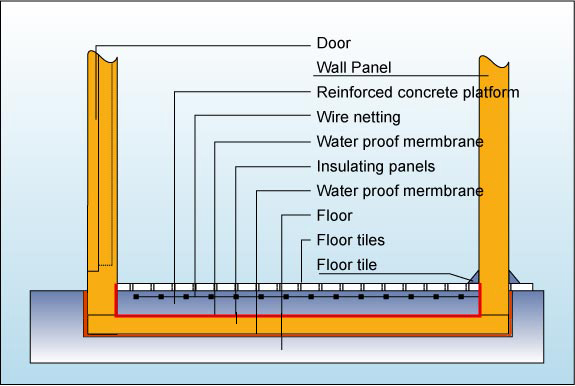

  BUILT-IN INSULATED FLOOR CONSTRUCTIONS

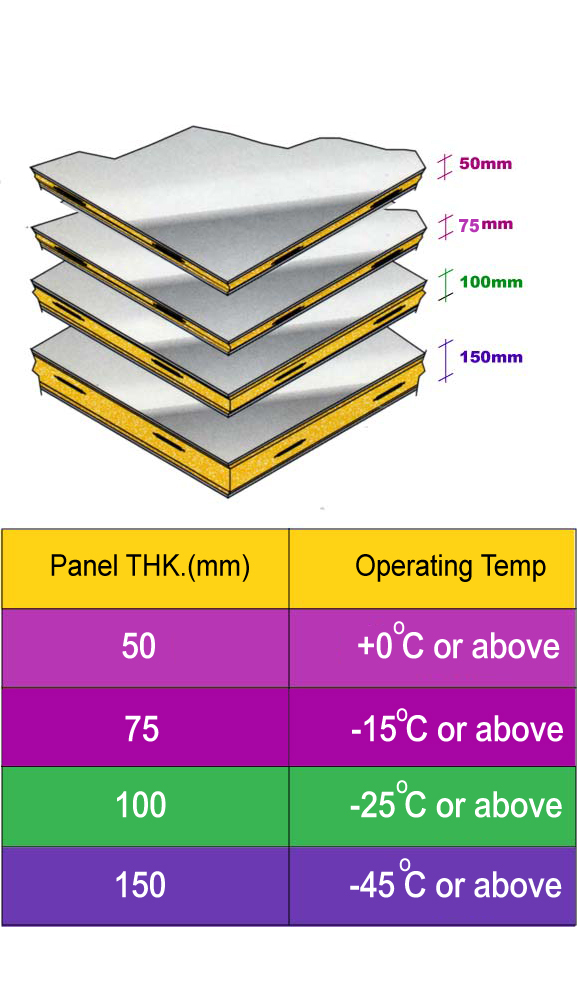

  STANDARD PANELS THICKNES





POLYRETHANE SPECIFICATION
THERMAL CONDUCITIVITY AT °C
　K/CAL 　0.018
AVERAGE DENSITY
　KG/M3 　38-40
RESISTENCE TO COMPRESSION
　KG/CM2 　1.6
HIGHER OPERATING TEMP
　°C 　60
HIGHER OPERATING TEMP
　°C 　-120

URETHANE INSULATION

"Foamed-in-place" polyurethane with its very high strenght-weight ratio, superior "closed cell" insulation properties and high density is used in all Success panels. It has double the insulation value ("K"=0.018) of conventional material. Success's 100mm panel thickness is equal to 190mm of fibreglass. Its peak insulation efficiently remains constant. Success's each panel is insulated with CFC-free, fire retardant, closed cell rigid polyurethane foam.
